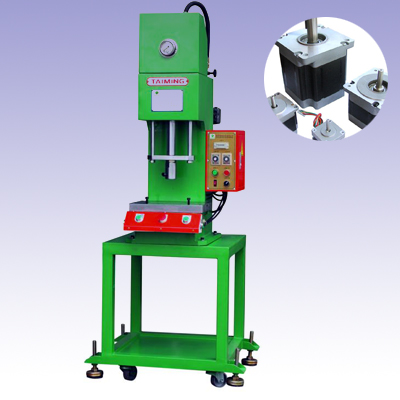

Mini motor pressure mounting
  • Specifications
  • Explain
  • Picture

Product features:
1 the series hydraulic pressure is the power source of liquid pressure, low noise, and can reduce power consumption when it is standby, so as to save energy and consume less power.;
2 the frame is rugged, the work piece is convenient, and the operation adjustment is easy.;
3 the use of the C type of the overall welding rugged structure, can withstand the big pressure, the workpiece upper and lower, easy to work adjustment easy;
4. Break up and semi-automatic two control mode, manual can be pressing die stopped at arbitrary distance range, equipped with emergency recovery button, equipped with infrared hand device;
5 the press fit stroke of the press generally through the timer, pressure switch, position sensor, or the customer's own mold control;
6 the pick-up height of the pressure mounted spindle can be adjusted by the timer or position sensor of any stroke range;
7 the pressure, the stroke, the time of the pressure keeping, the closed - height customers can adjust themselves, and operate conveniently;
8 hydraulic system gauge built-in rack, the appearance is neat, lightweight, stable;
9 with automatic counting function, but also with force measuring display, customized according to customer requirements;
10. The series of hydraulic machinery output range 1T-30T optional. To install optional: 1) machine under additional cushioning cylinder or the back cylinder; 2) additional automatic rotating disk; 3) automatic feeding or material returning device; 4) cylinder clamping device; 5) the body can be additional guide slide, can also take specific manufacturing.
Scope of application:
Widely used in metal stamping molding, press into the small motor rotor, mobile phone keypad Chong Bian, electronic products group / riveting molding.
